VC创建模态对话框
模态窗口的创建由DialogBox()函数。
首先定义几个id:
[cpp]
#define ID_FILE_EXIT 900
#define ID_STUFF_GO 9002
#define ID_HELP_ABOUT 9003
#define IDD_ABOUT 101
对话框的资源文件如下:
[cpp]
/////////////////////////////////////////////////////////////////////////////
//
// Dialog
//
IDD_ABOUT DIALOGEX 0, 0, 316, 183
STYLE DS_MODALFRAME | WS_POPUP | WS_CAPTION | WS_SYSMENU
CAPTION "My About Box"
FONT 8, "MS Sans Serif"
BEGIN
DEFPUSHBUTTON "&OK",IDOK,174,18,50,14
PUSHBUTTON "&Cancel",IDCANCEL,174,35,50,14
GROUPBOX "About this program...",IDC_STATIC,7,7,225,52
CTEXT "An example program showing how to use Dialog Boxes/r/n/r/nby wql",
IDC_STATIC,16,18,144,33
END
/////////////////////////////////////////////////////////////////////////////
开始创建对话框:
[cpp]
BOOL CALLBACK AboutDlgProc(HWND hwnd, UINT Message, WPARAM wParam, LPARAM lParam)
{
switch(Message)
{
case WM_INITDIALOG:
return TRUE;
case WM_COMMAND:
switch(LOWORD(wParam))
{
case IDOK:
EndDialog(hwnd, IDOK);
break;
case IDCANCEL:
EndDialog(hwnd, IDCANCEL);
break;
}
break;
default:
return FALSE;
}
return TRUE;
}
LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wParam, LPARAM lParam)
{
switch(msg)
{
case WM_CREATE:
{
HMENU hMenu, hSubMenu;
HICON hIcon, hIconSm;
hMenu = CreateMenu();
hSubMenu = CreatePopupMenu();
AppendMenu(hSubMenu, MF_STRING, ID_FILE_EXIT, "E&xit");
AppendMenu(hMenu, MF_STRING | MF_POPUP, (UINT)hSubMenu, "&File");
hSubMenu = CreatePopupMenu();
AppendMenu(hSubMenu, MF_STRING, ID_STUFF_GO, "&Go");
AppendMenu(hMenu, MF_STRING | MF_POPUP, (UINT)hSubMenu, "&Stuff");
hSubMenu = CreatePopupMenu();
AppendMenu(hSubMenu,MF_STRING , ID_HELP_ABOUT, "&About");
AppendMenu(hMenu,MF_STRING | MF_POPUP, (UINT)hSubMenu, "&Help");
SetMenu(hwnd, hMenu);
hIcon = (HICON)LoadImage(NULL, "icon1.ico", IMAGE_ICON, 32, 32,
LR_LOADFROMFILE);
if(hIcon)
SendMessage(hwnd, WM_SETICON, ICON_BIG, (LPARAM)hIcon);
else
MessageBox(hwnd, "Could not load large icon!", "Error", MB_OK |
MB_ICONERROR);
hIconSm = (HICON)LoadImage(NULL, "icon1.ico", IMAGE_ICON, 16, 16,
LR_LOADFROMFILE);
if(hIconSm)
SendMessage(hwnd, WM_SETICON, ICON_SMALL, (LPARAM)hIconSm);
else
MessageBox(hwnd, "Could not load small icon!", "Error", MB_OK |
MB_ICONERROR);
}
break;
case WM_COMMAND:
switch(LOWORD(wParam))
{
case ID_HELP_ABOUT:
{
int ret = DialogBox(GetModuleHandle(NULL),
MAKEINTRESOURCE(IDD_ABOUT), hwnd, AboutDlgProc); //创建模态窗口
if(ret == IDOK){
MessageBox(hwnd, "Dialog exited with IDOK.", "Notice",
MB_OK | MB_ICONINFORMATION);
}
else if(ret == IDCANCEL){
MessageBox(hwnd, "Dialog exited with IDCANCEL.", "Notice",
MB_OK | MB_ICONINFORMATION);
}
else if(ret == -1){
MessageBox(hwnd, "Dialog failed!", "Error",
MB_OK | MB_ICONINFORMATION);
}
}
break;
case ID_FILE_EXIT:
PostMessage(hwnd,WM_CLOSE,NULL,NULL);
break;
case ID_STUFF_GO:
MessageBox(hwnd,"you click the GO","Menu MessageBox",MB_OK | MB_ICONEXCLAMATION);
break;
}
break;
case WM_LBUTTONDOWN:
{
char szFileName[MAX_PATH];
HINSTANCE hInstance = GetModuleHandle(NULL);
GetModuleFileName(hInstance, szFileName, MAX_PATH);
MessageBox(hwnd, szFileName, "This program is:", MB_OK |
MB_ICONINFORMATION);
}
break;
case WM_CLOSE:
DestroyWindow(hwnd);
break;
case WM_DESTROY:
PostQuitMessage(0);
break;
default:
return DefWindowProc(hwnd, msg, wParam, lParam);
}
return 0;
}

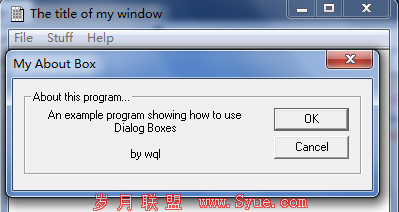

这就是我用来创建我的关于对话框的代码,你应该看出来这应该移到你的WM_COMMAND消息处理的代码中去,如果你对这点还不清楚,你可能需要复习关于菜单的那篇文章.ID_HELP_ABOUT是我的Help->About菜单项的标识.
因为我们要我们的主窗口的菜单来创建这个对话话,我们显然需要把这些代码放到我们主窗口的WndProc()中去,而不是对话框的过程中.
现在我存储了调用DialogBox()的返回值,这样你就可以观察你点击两个按钮的效果,在对话框中按Esc,Enter等等...这样做也展示了如何通过对话框的返回值来判断是否调用成功,和用戶用选择,或是你想从你的对话框过程中想返回给调用者的任何消息.
[cpp]
DialogBox(GetModuleHandle(NULL), MAKEINTRESOURCE(IDD_ABOUT), hwnd, AboutDlgProc);
这是唯一重要的地方,你可以把这段代码放到你想要对话框出现的任何地方.IDD_ABOUT是对话框资源的标识.hwnd是对话框的父窗口的句柄.AboutDlgProc()当然是用来控制对话框的对话过程.
