Linux DHCP服务实验报告
DHCP实验报告 --杨冬
- 实验环境
服务器：Red Hat Enterprise Linux 5.3（ip：192.168.0.20）
服务器：Red Hat Enterprise Linux 5.3（ip：192.168.0.10、192.168.1.10）
客户端：windows xp
01.安装好软件包
[root@yang ~]# rpm -ihv /media/Server/dhcp-3.0.5-18.el5.i386.rpm
- 实验目标一：配置一台DHCP服务器为局域网用户分配ip地址。
01.修改配置文件.
[root@yang ~]# cp -rf /usr/share/doc/dhcp-3.0.5/dhcpd.conf.sample /etc/dhcpd.conf
cp：是否覆盖“/etc/dhcpd.conf”? y
[root@yang ~]# vim /etc/dhcpd.conf
ddns-update-style interim;
ignore client-updates;
subnet 192.168.0.0 netmask 255.255.255.0 {
option routers 192.168.0.1;
option subnet-mask 255.255.255.0;
option nis-domain "yangdong.com";
option domain-name "yangdong.com";
option domain-name-servers 61.147.37.1;
option time-offset -18000; # Eastern Standard Time
range dynamic-bootp 192.168.0.128 192.168.0.254;
default-lease-time 21600;
max-lease-time 43200;
host ns {
next-server marvin.redhat.com;
hardware ethernet 12:34:56:78:AB:CD;
fixed-address 207.175.42.254;
}
}
02.重启服务器.
[root@yang ~]# service dhcpd restart
关闭dhcpd： [确定]
启动dhcpd： [确定]

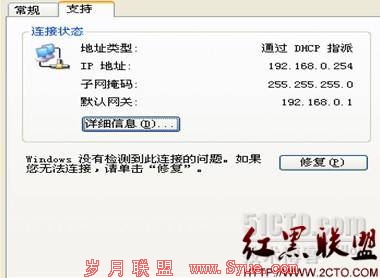

03.客户端测试
测试成功
- 实验目标二：配置实现DHCP中继代理服务.
01.实验环境：
主服务器安装： [root@yang ~]# rpm -ihv /media/Server/dhcp-3.0.5-18.el5.i386.rpm
中继服务器安装：[root@yang ~]# rpm -ihv /media/Server/dhcp-3.0.5-18.el5.i386.rpm
02.主服务器配置：
①.[root@yang ~]# vim /etc/dhcpd.conf
ddns-update-style interim;
ignore client-updates;
subnet 192.168.0.0 netmask 255.255.255.0 {
option routers 192.168.0.1;
option subnet-mask 255.255.255.0;
option nis-domain "yangdong.com";
option domain-name "yangdong.com";
option domain-name-servers 61.147.37.1;
option time-offset -18000; # Eastern Standard Time
range dynamic-bootp 192.168.0.128 192.168.0.254;
default-lease-time 21600;
max-lease-time 43200;
}
subnet 192.168.1.0 netmask 255.255.255.0 {
option routers 192.168.1.1;
option subnet-mask 255.255.255.0;
option nis-domain "yangdong.com";
option domain-name "yangdong.com";
option domain-name-servers 61.147.37.1;
option time-offset -18000; # Eastern Standard Time
range dynamic-bootp 192.168.1.128 192.168.1.254;
default-lease-time 21600;
max-lease-time 43200;
}
②.重启服务器.
[root@yang ~]# service dhcpd restart
关闭dhcpd： [确定]
启动dhcpd： [确定]
03. 中继服务器配置
①.[root@hello ~]# rpm -ihv /media/Server/dhcp-3.0.5-18.el5.i386.rpm
warning: /media/Server/dhcp-3.0.5-18.el5.i386.rpm: Header V3 DSA signature: NOKEY, key ID 37017186
Preparing... ########################################### [100%]
1:dhcp ########################################### [100%]
[root@hello ~]# service dhcpd start
启动dhcpd： [失败]
②.[root@hello ~]# vim /etc/sysctl.con
修改：net.ipv4.ip_forward = 1 //开启路由功能
[root@hello ~]# sysctl -p
net.ipv4.ip_forward = 1
net.ipv4.conf.default.rp_filter = 1
net.ipv4.conf.default.accept_source_route = 0
kernel.sysrq = 0
kernel.core_uses_pid = 1
net.ipv4.tcp_syncookies = 1
kernel.msgmnb = 65536
kernel.msgmax = 65536
kernel.shmmax = 4294967295
kernel.shmall = 268435456
③.[root@hello ~]# vim /etc/sysconfig/dhcrelay
# Command line options here
INTERFACES="eth0 eth1"
DHCPSERVERS="192.168.0.20"
[root@hello ~]# service dhcrelay start
启动dhcrelay：
[确定]
④.客户端测试
测试成功
- 实验前的准备
